2014/12/31

Draggable and sortable JPanels

Code

class RearrangingHandler extends MouseAdapter {
  private static final int xoffset = 16;
  private static final Rectangle R1 = new Rectangle();
  private static final Rectangle R2 = new Rectangle();
  private static Rectangle prevRect;
  private final int gestureMotionThreshold = DragSource.getDragThreshold();
  private final JWindow window = new JWindow();
  private int index = -1;
  private Component draggingComonent;
  private Component gap;
  private Point startPt;
  private Point dragOffset;

  public RearrangingHandler() {
    super();
    window.setBackground(new Color(0, true));
  }
  @Override public void mousePressed(MouseEvent e) {
    if (((JComponent) e.getComponent()).getComponentCount() <= 1) {
      startPt = null;
    } else {
      startPt = e.getPoint();
    }
  }
  private void startDragging(JComponent parent, Point pt) {
    Component c = parent.getComponentAt(pt);
    index = parent.getComponentZOrder(c);
    if (Objects.equals(c, parent) || index < 0) {
      return;
    }
    draggingComonent = c;
    Dimension d = draggingComonent.getSize();

    Point dp = draggingComonent.getLocation();
    dragOffset = new Point(pt.x - dp.x, pt.y - dp.y);

    gap = Box.createRigidArea(d);
    swapComponentLocation(parent, c, gap, index);

    window.add(draggingComonent);
    //window.setSize(d);
    window.pack();

    updateWindowLocation(pt, parent);
    window.setVisible(true);
  }
  private void updateWindowLocation(Point pt, JComponent parent) {
    Point p = new Point(pt.x - dragOffset.x, pt.y - dragOffset.y);
    SwingUtilities.convertPointToScreen(p, parent);
    window.setLocation(p);
  }
  private static int getTargetIndex(Rectangle r, Point pt, int i) {
    int ht2 = (int)(.5 + r.height * .5);
    R1.setBounds(r.x, r.y,       r.width, ht2);
    R2.setBounds(r.x, r.y + ht2, r.width, ht2);
    if (R1.contains(pt)) {
      prevRect = R1;
      return i - 1 > 0 ? i : 0;
    } else if (R2.contains(pt)) {
      prevRect = R2;
      return i;
    }
    return -1;
  }
  private static void swapComponentLocation(
      Container parent, Component remove, Component add, int idx) {
    parent.remove(remove);
    parent.add(add, idx);
    parent.revalidate();
    parent.repaint();
  }
  @Override public void mouseDragged(MouseEvent e) {
    Point pt = e.getPoint();
    JComponent parent = (JComponent) e.getComponent();
    double a = Math.pow(pt.x - startPt.x, 2);
    double b = Math.pow(pt.y - startPt.y, 2);
    if (draggingComonent == null &&
        Math.sqrt(a + b) > gestureMotionThreshold) {
      startDragging(parent, pt);
      return;
    }
    if (!window.isVisible() || draggingComonent == null) {
      return;
    }
    updateWindowLocation(pt, parent);
    if (prevRect != null && prevRect.contains(pt)) {
      return;
    }

    for (int i = 0; i < parent.getComponentCount(); i++) {
      Component c = parent.getComponent(i);
      Rectangle r = c.getBounds();
      if (Objects.equals(c, gap) && r.contains(pt)) {
        return;
      }
      int tgt = getTargetIndex(r, pt, i);
      if (tgt >= 0) {
        swapComponentLocation(parent, gap, gap, tgt);
        return;
      }
    }
    //System.out.println("outer");
    parent.remove(gap);
    parent.revalidate();
  }

  @Override public void mouseReleased(MouseEvent e) {
    startPt = null;
    if (!window.isVisible() || draggingComonent == null) {
      return;
    }
    Point pt = e.getPoint();
    JComponent parent = (JComponent) e.getComponent();

    Component cmp = draggingComonent;
    draggingComonent = null;
    prevRect = null;
    startPt = null;
    dragOffset = null;
    window.setVisible(false);

    for (int i = 0; i < parent.getComponentCount(); i++) {
      Component c = parent.getComponent(i);
      if (Objects.equals(c, gap)) {
        swapComponentLocation(parent, gap, cmp, i);
        return;
      }
      int tgt = getTargetIndex(c.getBounds(), pt, i);
      if (tgt >= 0) {
        swapComponentLocation(parent, gap, cmp, tgt);
        return;
      }
    }
    if (parent.getParent().getBounds().contains(pt)) {
      swapComponentLocation(parent, gap, cmp, parent.getComponentCount());
    } else {
      swapComponentLocation(parent, gap, cmp, index);
    }
  }
}

References

2014/11/27

Make a transparent JTree and translucent selection background

Code

class TransparentTreeCellRenderer extends DefaultTreeCellRenderer {
  @Override public Component getTreeCellRendererComponent(
          JTree tree, Object value, boolean isSelected, boolean expanded,
          boolean leaf, int row, boolean hasFocus) {
    JComponent c = (JComponent) super.getTreeCellRendererComponent(
          tree, value, isSelected, expanded, leaf, row, hasFocus);
    c.setOpaque(false);
    return c;
  }
  private final Color ALPHA_OF_ZERO = new Color(0, true);
  @Override public Color getBackgroundNonSelectionColor() {
    return ALPHA_OF_ZERO;
  }
  @Override public Color getBackgroundSelectionColor() {
    return ALPHA_OF_ZERO;
  }
}

class TranslucentTreeCellRenderer extends TransparentTreeCellRenderer {
  private final Color backgroundSelectionColor = new Color(100, 100, 255, 100);
  @Override public Color getBackgroundSelectionColor() {
    return backgroundSelectionColor;
  }
}

References

2014/10/29

JMenuItem accelerator text alignment

Code

RightAcc

public static void paintAccText(
  Graphics g, MenuItemLayoutHelper lh, MenuItemLayoutHelper.LayoutResult lr,
  Color disabledForeground, Color acceleratorForeground,
  Color acceleratorSelectionForeground) {
  if (!lh.getAccText().equals("")) {
    ButtonModel model = lh.getMenuItem().getModel();
    g.setFont(lh.getAccFontMetrics().getFont());
    if (!model.isEnabled()) {
      // *** paint the accText disabled
      if (disabledForeground != null) {
        g.setColor(disabledForeground);
        SwingUtilities2.drawString(
          lh.getMenuItem(), g, lh.getAccText(),
          lr.getAccRect().x,
          lr.getAccRect().y + lh.getAccFontMetrics().getAscent());
      } else {
        g.setColor(lh.getMenuItem().getBackground().brighter());
        SwingUtilities2.drawString(
          lh.getMenuItem(), g, lh.getAccText(),
          lr.getAccRect().x,
          lr.getAccRect().y + lh.getAccFontMetrics().getAscent());
        g.setColor(lh.getMenuItem().getBackground().darker());
        SwingUtilities2.drawString(
          lh.getMenuItem(), g, lh.getAccText(),
          lr.getAccRect().x - 1,
          lr.getAccRect().y + lh.getFontMetrics().getAscent() - 1);
      }
    } else {
      // *** paint the accText normally
      if (model.isArmed() ||
          (lh.getMenuItem() instanceof JMenu && model.isSelected())) {
        g.setColor(acceleratorSelectionForeground);
      } else {
        g.setColor(acceleratorForeground);
      }
      SwingUtilities2.drawString(
        lh.getMenuItem(), g, lh.getAccText(),
        //lr.getAccRect().x, //++++++++++++++++++++
        lh.getViewRect().x + lh.getViewRect().width
        - lh.getMenuItem().getIconTextGap() - lr.getAccRect().width,
        //++++++++++++++++++++
        lr.getAccRect().y + lh.getAccFontMetrics().getAscent());
    }
  }
}

EastAcc

public static void paintAccText(
private static JMenuItem makeMenuItem2(JMenuItem mi) {
  final JLabel label = new JLabel(MenuItemUIHelper.getAccText(mi, "+"));
  label.setOpaque(true);
  JMenuItem item = new JMenuItem(mi.getText()) {
    @Override public void updateUI() {
      super.updateUI();
      if (getUI() instanceof WindowsMenuItemUI) {
        setUI(new WindowsMenuItemUI() {
          @Override protected void installDefaults() {
            super.installDefaults();
            acceleratorForeground = UIManager.getColor("MenuItem.background");
            acceleratorSelectionForeground = acceleratorForeground;
          }
        });
      }
    }
  };

  GridBagConstraints c = new GridBagConstraints();
  item.setLayout(new GridBagLayout());
  c.gridheight = 1;
  c.gridwidth  = 1;
  c.gridy = 0;
  c.gridx = 0;
  c.insets = new Insets(0, 0, 0, 4);

  c.weightx = 1d;
  c.fill = GridBagConstraints.HORIZONTAL;
  item.add(Box.createHorizontalGlue(), c);
  c.gridx = 1;
  c.fill = GridBagConstraints.NONE;
  c.weightx = 0d;
  c.anchor = GridBagConstraints.EAST;
  item.add(label, c);

  item.setMnemonic(mi.getMnemonic());
  item.setAccelerator(mi.getAccelerator());
  return item;
}

References

2014/09/29

Change a layout of a JPopupMenu to use their iconic menu items

Code

JPopupMenu popup = new JPopupMenu();
GridBagConstraints c = new GridBagConstraints();
popup.setLayout(new GridBagLayout());
c.gridheight = 1;

c.weightx = 1.0;
c.weighty = 0.0;
c.fill = GridBagConstraints.HORIZONTAL;
c.anchor = GridBagConstraints.CENTER;

c.gridwidth = 1;
c.gridy = 0;
c.gridx = 0; popup.add(makeButton("\u21E6"), c);
c.gridx = 1; popup.add(makeButton("\u21E8"), c);
c.gridx = 2; popup.add(makeButton("\u21BB"), c);
c.gridx = 3; popup.add(makeButton("\u2729"), c);

c.gridwidth = 4;
c.gridx = 0;
c.insets = new Insets(2, 0, 2, 0);
c.gridy = 1; popup.add(new JSeparator(), c);
c.insets = new Insets(0, 0, 0, 0);
c.gridy = 2; popup.add(new JMenuItem("aaaaaaaaaa"), c);
c.gridy = 3; popup.add(new JPopupMenu.Separator(), c);
c.gridy = 4; popup.add(new JMenuItem("bbbb"), c);
c.gridy = 5; popup.add(new JMenuItem("ccccccccccccccccccccc"), c);
c.gridy = 6; popup.add(new JMenuItem("dddddddddd"), c);
final Icon icon = new SymbolIcon(symbol);
JMenuItem b = new JMenuItem() {
  private final Dimension d = new Dimension(icon.getIconWidth(), icon.getIconHeight());
  @Override public Dimension getPreferredSize() {
    return d;
  }
  @Override public void paintComponent(Graphics g) {
    super.paintComponent(g);
    Dimension cd = getSize();
    Dimension pd = getPreferredSize();
    int offx = (int) (.5 + .5 * (cd.width  - pd.width));
    int offy = (int) (.5 + .5 * (cd.height - pd.height));
    icon.paintIcon(this, g, offx, offy);
  }
};
b.setOpaque(true);

References

2014/09/01

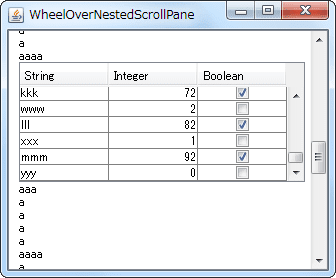

Forward a mouse wheel scroll event in nested JScrollPane to the parent JScrollPane

Code

class WheelScrollLayerUI extends LayerUI {
  @Override public void installUI(JComponent c) {
    super.installUI(c);
    if (c instanceof JLayer) {
      ((JLayer) c).setLayerEventMask(AWTEvent.MOUSE_WHEEL_EVENT_MASK);
    }
  }
  @Override public void uninstallUI(JComponent c) {
    if (c instanceof JLayer) {
      ((JLayer) c).setLayerEventMask(0);
    }
    super.uninstallUI(c);
  }
  @Override protected void processMouseWheelEvent(
      MouseWheelEvent e, JLayer l) {
    Component c = e.getComponent();
    int dir = e.getWheelRotation();
    JScrollPane main = l.getView();
    if (c instanceof JScrollPane && !c.equals(main)) {
      JScrollPane child = (JScrollPane) c;
      BoundedRangeModel m = child.getVerticalScrollBar().getModel();
      int extent  = m.getExtent();
      int minimum = m.getMinimum();
      int maximum = m.getMaximum();
      int value   = m.getValue();
      if (value + extent >= maximum && dir > 0 || value <= minimum && dir < 0) {
        main.dispatchEvent(SwingUtilities.convertMouseEvent(c, e, main));
      }
    }
  }
}

References

2014/07/23

Highlight all search pattern matches in the JTextArea

Code

private Pattern getPattern() {
  String text = field.getText();
  if (text == null || text.isEmpty()) {
    return null;
  }
  try {
    String cw = checkWord.isSelected() ? "\\b" : "";
    String pattern = String.format("%s%s%s", cw, text, cw);
    int flags = checkCase.isSelected()
      ? 0
      : Pattern.CASE_INSENSITIVE | Pattern.UNICODE_CASE;
    return Pattern.compile(pattern, flags);
  } catch (PatternSyntaxException ex) {
    field.setBackground(WARNING_COLOR);
    return null;
  }
}

private void changeHighlight() {
  field.setBackground(Color.WHITE);
  Highlighter highlighter = textArea.getHighlighter();
  highlighter.removeAllHighlights();
  Document doc = textArea.getDocument();
  try {
    Pattern pattern = getPattern();
    if (pattern != null) {
      Matcher matcher = pattern.matcher(doc.getText(0, doc.getLength()));
      int pos = 0;
      while (matcher.find(pos)) {
        int start = matcher.start();
        int end   = matcher.end();
        highlighter.addHighlight(start, end, highlightPainter);
        pos = end;
      }
    }
    JLabel label = layerUI.hint;
    Highlighter.Highlight[] array = highlighter.getHighlights();
    int hits = array.length;
    if (hits == 0) {
      current = -1;
      label.setOpaque(true);
    } else {
      current = (current + hits) % hits;
      label.setOpaque(false);
      Highlighter.Highlight hh = highlighter.getHighlights()[current];
      highlighter.removeHighlight(hh);
      highlighter.addHighlight(
          hh.getStartOffset(), hh.getEndOffset(), currentPainter);
      scrollToCenter(textArea, hh.getStartOffset());
    }
    label.setText(String.format("%02d / %02d%n", current + 1, hits));
  } catch (BadLocationException e) {
    e.printStackTrace();
  }
  field.repaint();
}

References

2014/06/29

Merge the ReplaceEdit(remove and insertString edit) into a single CompoundEdit

Code

class DocumentFilterUndoManager extends UndoManager {
  private CompoundEdit compoundEdit;
  public final DocumentFilter undoFilter = new DocumentFilter() {
    @Override public void replace(
        DocumentFilter.FilterBypass fb,
        int offset, int length, String text,
        AttributeSet attrs) throws BadLocationException {
      if (length == 0) {
        fb.insertString(offset, text, attrs);
      } else {
        compoundEdit = new CompoundEdit();
        fb.replace(offset, length, text, attrs);
        compoundEdit.end();
        addEdit(compoundEdit);
        compoundEdit = null;
      }
    }
  };
  @Override public void undoableEditHappened(UndoableEditEvent e) {
    if (compoundEdit == null) {
      addEdit(e.getEdit());
    } else {
      compoundEdit.addEdit(e.getEdit());
    }
  }
}

References

2014/06/02

How to create a circular progress component

Code

class ProgressCircleUI extends BasicProgressBarUI {
  @Override public Dimension getPreferredSize(JComponent c) {
    Dimension d = super.getPreferredSize(c);
    int v = Math.max(d.width, d.height);
    d.setSize(v, v);
    return d;
  }
  @Override public void paint(Graphics g, JComponent c) {
    Insets b = progressBar.getInsets(); // area for border
    int barRectWidth  = progressBar.getWidth()  - b.right - b.left;
    int barRectHeight = progressBar.getHeight() - b.top - b.bottom;
    if (barRectWidth <= 0 || barRectHeight <= 0) {
      return;
    }

    // draw the cells
    Graphics2D g2 = (Graphics2D) g.create();
    g2.setRenderingHint(RenderingHints.KEY_ANTIALIASING,
                        RenderingHints.VALUE_ANTIALIAS_ON);
    g2.setPaint(progressBar.getForeground());
    double degree = 360 * progressBar.getPercentComplete();
    double sz = Math.min(barRectWidth, barRectHeight);
    double cx = b.left + barRectWidth  * .5;
    double cy = b.top  + barRectHeight * .5;
    double or = sz * .5;
    double ir = or * .5; //or - 20;
    Shape inner = new Ellipse2D.Double(cx - ir, cy - ir, ir * 2, ir * 2);
    Shape outer = new Arc2D.Double(
        cx - or, cy - or, sz, sz, 90 - degree, degree, Arc2D.PIE);
    Area area = new Area(outer);
    area.subtract(new Area(inner));
    g2.fill(area);
    g2.dispose();

    // Deal with possible text painting
    if (progressBar.isStringPainted()) {
      paintString(g, b.left, b.top, barRectWidth, barRectHeight, 0, b);
    }
  }
}
import java.awt.*;
import javax.swing.*;

public class CircularProgressTest {
  public JComponent makeUI() {
    JProgressBar progress = new JProgressBar();
    // use JProgressBar#setUI(...) method
    progress.setUI(new ProgressCircleUI());
    progress.setBorder(BorderFactory.createEmptyBorder(8, 8, 8, 8));
    progress.setStringPainted(true);
    progress.setFont(progress.getFont().deriveFont(24f));
    progress.setForeground(Color.ORANGE);

    (new Timer(50, e -> {
      int iv = Math.min(100, progress.getValue() + 1);
      progress.setValue(iv);
    })).start();

    JPanel p = new JPanel();
    p.add(progress);
    return p;
  }
  public static void main(String... args) {
    EventQueue.invokeLater(() -> {
      JFrame f = new JFrame();
      f.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
      f.getContentPane().add(new CircularProgressTest().makeUI());
      f.setSize(320, 240);
      f.setLocationRelativeTo(null);
      f.setVisible(true);
    });
  }
}

References

2014/05/01

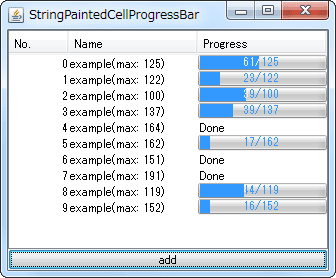

JProgressBar in JTable cell render a progress string

Code

class Task extends SwingWorker {
  private final int lengthOfTask;
  private final int sleepDummy = new Random().nextInt(100) + 1;
  public Task(int lengthOfTask) {
    super();
    this.lengthOfTask = lengthOfTask;
  }
  @Override protected Integer doInBackground() {
    int current = 0;
    while (current < lengthOfTask && !isCancelled()) {
      current++;
      try {
        Thread.sleep(sleepDummy);
      } catch (InterruptedException ie) {
        break;
      }
      publish(new ProgressValue(lengthOfTask, current));
    }
    return sleepDummy * lengthOfTask;
  }
}

class ProgressValue {
  private final Integer progress;
  private final Integer lengthOfTask;
  public ProgressValue(Integer lengthOfTask, Integer progress) {
    this.progress = progress;
    this.lengthOfTask = lengthOfTask;
  }
  public Integer getProgress() {
    return progress;
  }
  public Integer getLengthOfTask() {
    return lengthOfTask;
  }
}

class ProgressRenderer extends DefaultTableCellRenderer {
  private final JProgressBar b = new JProgressBar();
  private final JPanel p = new JPanel(new BorderLayout());
  public ProgressRenderer() {
    super();
    setOpaque(true);
    b.setStringPainted(true);
    p.add(b);
  }
  @Override public Component getTableCellRendererComponent(
      JTable table, Object value, boolean isSelected, boolean hasFocus,
      int row, int column) {
    String text = "Done";
    if (value instanceof ProgressValue) {
      ProgressValue pv = (ProgressValue) value;
      Integer current = pv.getProgress();
      Integer lengthOfTask = pv.getLengthOfTask();
      if (current < 0) {
        text = "Canceled";
      } else if (current < lengthOfTask) {
        b.setMaximum(lengthOfTask);
        b.setValue(current);
        b.setString(String.format("%d/%d", current, lengthOfTask));
        return p;
      }
    }
    super.getTableCellRendererComponent(
        table, text, isSelected, hasFocus, row, column);
    return this;
  }
  @Override public void updateUI() {
    super.updateUI();
    if (p != null) {
      SwingUtilities.updateComponentTreeUI(p);
    }
  }
}

References

2014/03/27

Long pressing the JButton to get a JPopupMenu

Code

class PressAndHoldHandler extends AbstractAction implements MouseListener {
  public final JPopupMenu pop = new JPopupMenu();
  public final ButtonGroup bg = new ButtonGroup();
  private AbstractButton arrowButton;
  private final Timer holdTimer = new Timer(1000, new ActionListener() {
    @Override public void actionPerformed(ActionEvent e) {
      System.out.println("InitialDelay(1000)");
      if (arrowButton != null && arrowButton.getModel().isPressed()
          && holdTimer.isRunning()) {
        holdTimer.stop();
        pop.show(arrowButton, 0, arrowButton.getHeight());
        pop.requestFocusInWindow();
      }
    }
  });
  public PressAndHoldHandler() {
    super();
    holdTimer.setInitialDelay(1000);
    pop.setLayout(new GridLayout(0, 3, 5, 5));
    for (MenuContext m: makeMenuList()) {
      AbstractButton b = new JRadioButton(m.command);
      b.setActionCommand(m.command);
      b.setForeground(m.color);
      b.setBorder(BorderFactory.createEmptyBorder());
      b.addActionListener(new ActionListener() {
        @Override public void actionPerformed(ActionEvent e) {
          System.out.println(bg.getSelection().getActionCommand());
          pop.setVisible(false);
        }
      });
      pop.add(b);
      bg.add(b);
    }
  }
  private List makeMenuList() {
    return Arrays.asList(
      new MenuContext("BLACK",   Color.BLACK),
      new MenuContext("BLUE",  Color.BLUE),
      new MenuContext("CYAN",  Color.CYAN),
      new MenuContext("GREEN",   Color.GREEN),
      new MenuContext("MAGENTA", Color.MAGENTA),
      new MenuContext("ORANGE",  Color.ORANGE),
      new MenuContext("PINK",  Color.PINK),
      new MenuContext("RED",   Color.RED),
      new MenuContext("YELLOW",  Color.YELLOW));
  }
  @Override public void actionPerformed(ActionEvent e) {
    System.out.println("actionPerformed");
    if (holdTimer.isRunning()) {
      ButtonModel model = bg.getSelection();
      if (model != null) {
        System.out.println(model.getActionCommand());
      }
      holdTimer.stop();
    }
  }
  @Override public void mousePressed(MouseEvent e) {
    System.out.println("mousePressed");
    Component c = e.getComponent();
    if (SwingUtilities.isLeftMouseButton(e) && c.isEnabled()) {
      arrowButton = (AbstractButton) c;
      holdTimer.start();
    }
  }
  @Override public void mouseReleased(MouseEvent e) {
    holdTimer.stop();
  }
  @Override public void mouseExited(MouseEvent e) {
    if (holdTimer.isRunning()) {
      holdTimer.stop();
    }
  }
  @Override public void mouseEntered(MouseEvent e) { /* not needed */ }
  @Override public void mouseClicked(MouseEvent e) { /* not needed */ }
}

References

2014/02/26

Translucent JFrame repaint

Code

private final SimpleDateFormat df = new SimpleDateFormat("HH:mm:ss", Locale.getDefault());
private final JLabel label = new JLabel(df.format(new Date()), SwingConstants.CENTER);
private final TexturePanel tp;
private final Timer timer = new Timer(1000, new ActionListener() {
  @Override public void actionPerformed(ActionEvent e) {
    label.setText(df.format(new Date()));
    Container parent = SwingUtilities.getUnwrappedParent(label);
    if (parent != null && parent.isOpaque()) {
      repaintWindowAncestor(label);
    }
  }
});
private final JToggleButton button = new JToggleButton(new AbstractAction("timer") {
  private JFrame digitalClock;
  @Override public void actionPerformed(ActionEvent e) {
    if (digitalClock == null) {
      digitalClock = new JFrame();
      digitalClock.setUndecorated(true);
      digitalClock.setBackground(new Color(0, 0, 0, 0));
      digitalClock.setDefaultCloseOperation(WindowConstants.HIDE_ON_CLOSE);
      digitalClock.getContentPane().add(tp);
      digitalClock.pack();
      digitalClock.setLocationRelativeTo(null);
    }
    if (((AbstractButton) e.getSource()).isSelected()) {
      TexturePaints t = (TexturePaints) combo.getSelectedItem();
      tp.setTexturePaint(t.getTexturePaint());
      timer.start();
      digitalClock.setVisible(true);
    } else {
      timer.stop();
      digitalClock.setVisible(false);
    }
  }
});
private void repaintWindowAncestor(JComponent c) {
  JRootPane root = c.getRootPane();
  if (root == null) {
    return;
  }
  Rectangle r = SwingUtilities.convertRectangle(c, c.getBounds(), root);
  root.repaint(r.x, r.y, r.width, r.height);
}

References

2014/01/30

Use JTree as the table of contents

Code

class TableOfContentsTree extends JTree {
  private static final BasicStroke READER = new BasicStroke(
      1f, BasicStroke.CAP_BUTT, BasicStroke.JOIN_MITER, 1f, new float[] { 1f }, 0f);
  private boolean isSynth = false;
  public TableOfContentsTree(TreeModel model) {
    super(model);
  }
  @Override public void updateUI() {
    super.updateUI();
    setBorder(BorderFactory.createTitledBorder("JTree#paintComponent(...)"));
    isSynth = getUI().getClass().getName().contains("Synth");
  }
  private Rectangle getVisibleRowsRect() {
    Insets i = getInsets();
    Rectangle visRect = getVisibleRect();
    if(visRect.x == 0 && visRect.y == 0 && visRect.width == 0 &&
       visRect.height == 0 && getVisibleRowCount() > 0) {
      // The tree doesn't have a valid bounds yet. Calculate
      // based on visible row count.
      visRect.width = 1;
      visRect.height = getRowHeight() * getVisibleRowCount();
    }else{
      visRect.x -= i.left;
      visRect.y -= i.top;
    }
    // we should consider a non-visible area above
    Component component = SwingUtilities.getUnwrappedParent(this);
    if(component instanceof JViewport) {
      component = component.getParent();
      if(component instanceof JScrollPane) {
        JScrollPane pane = (JScrollPane) component;
        JScrollBar bar = pane.getHorizontalScrollBar();
        if(bar != null && bar.isVisible()) {
          int height = bar.getHeight();
          visRect.y -= height;
          visRect.height += height;
        }
      }
    }
    return visRect;
  }
  @Override public void paintComponent(Graphics g) {
    g.setColor(getBackground());
    g.fillRect(0,0,getWidth(),getHeight());
    super.paintComponent(g);
    Graphics2D g2 = (Graphics2D)g.create();
    FontMetrics fm = g.getFontMetrics();
    int pnmaxWidth = fm.stringWidth("000");
    Insets ins   = getInsets();
    Rectangle rect = getVisibleRowsRect();
    for(int i=0;i< getRowCount();i++) {
      Rectangle r = getRowBounds(i);
      if(rect.intersects(r)) {
        TreePath path = getPathForRow(i);
        TreeCellRenderer tcr = getCellRenderer();
        JComponent c = (JComponent)tcr;
        if(isSynth && isRowSelected(i)) {
          if(tcr instanceof DefaultTreeCellRenderer) {
            DefaultTreeCellRenderer renderer = (DefaultTreeCellRenderer)tcr;
            g2.setColor(renderer.getTextSelectionColor());
          }
        }else{
          g2.setColor(getForeground());
        }
        DefaultMutableTreeNode node = (DefaultMutableTreeNode)path.getLastPathComponent();
        Object o = node.getUserObject();
        if(o instanceof TableOfContents) {
          TableOfContents toc = (TableOfContents)o;
          String pn = "" + toc.page;
          int x = getWidth() -1 - fm.stringWidth(pn) - ins.right;
          //int y = (int)(0.5 + r.y + (r.height + fm.getAscent()) * 0.5);
          int y = r.y + c.getBaseline(r.width, r.height);
          g2.drawString(pn, x, y);

          int gap = 5;
          int x2  = getWidth() -1 - pnmaxWidth - ins.right;
          Stroke s = g2.getStroke();
          g2.setStroke(READER);
          g2.drawLine(r.x + r.width + gap, y, x2 - gap, y);
          g2.setStroke(s);
        }
      }
    }
    g2.dispose();
  }
}

References
