2018/12/27

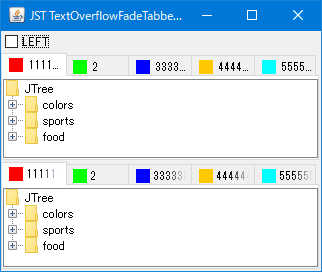

Fade out JTabbedPane tab title on overflow instead of ellipsis

Code

class TextOverflowFadeTabbedPane extends ClippedTitleTabbedPane {
  protected TextOverflowFadeTabbedPane() {
    super();
  }

  protected TextOverflowFadeTabbedPane(int tabPlacement) {
    super(tabPlacement);
  }

  @Override public void insertTab(
        String title, Icon icon, Component component, String tip, int index) {
    super.insertTab(title, icon, component, Objects.toString(tip, title), index);
    JPanel p = new JPanel(new BorderLayout(2, 0));
    p.setOpaque(false);
    p.add(new JLabel(icon), BorderLayout.WEST);
    p.add(new TextOverflowFadeLabel(title));
    setTabComponentAt(index, p);
  }
}

class TextOverflowFadeLabel extends JLabel {
  private static final int LENGTH = 20;
  private static final float DIFF = .05f;

  protected TextOverflowFadeLabel(String text) {
    super(text);
  }

  @Override public void paintComponent(Graphics g) {
    Insets i = getInsets();
    int w = getWidth() - i.left - i.right;
    int h = getHeight() - i.top - i.bottom;
    Rectangle rect = new Rectangle(i.left, i.top, w - LENGTH, h);

    Graphics2D g2 = (Graphics2D) g.create();
    g2.setFont(g.getFont());
    g2.setPaint(getForeground());

    FontRenderContext frc = g2.getFontRenderContext();
    TextLayout tl = new TextLayout(getText(), getFont(), frc);
    int baseline = getBaseline(w, h);

    g2.setClip(rect);
    tl.draw(g2, getInsets().left, baseline);

    rect.width = 1;
    float alpha = 1f;
    for (int x = w - LENGTH; x < w; x++) {
      rect.x = x;
      alpha = Math.max(0f, alpha - DIFF);
      g2.setComposite(AlphaComposite.SrcOver.derive(alpha));
      g2.setClip(rect);
      tl.draw(g2, getInsets().left, baseline);
    }
    g2.dispose();
  }
}

References

Fade out JTabbedPane tab title on overflow instead of ellipsis(Japanese)

2018/11/29

Add editable JCheckBox to ComboBoxEditor of JComboBox

Code

class CheckComboBoxEditor implements ComboBoxEditor {
  private final EditorPanel editor = new EditorPanel(new ComboItem());
  @Override public void selectAll() {
    editor.selectAll();
  }

  @Override public Object getItem() {
    return editor.getItem();
  }

  @Override public void setItem(Object anObject) {
    EventQueue.invokeLater(() -> {
      Container c = SwingUtilities.getAncestorOfClass(
          JComboBox.class, getEditorComponent());
      if (c instanceof JComboBox) {
        JComboBox<?> combo = (JComboBox<?>) c;
        int idx = combo.getSelectedIndex();
        if (idx >= 0 && idx != editor.getEditingIndex()) {
          System.out.println("setItem: " + idx);
          editor.setEditingIndex(idx);
        }
      }
    });
    if (anObject instanceof ComboItem) {
      editor.setItem((ComboItem) anObject);
    } else {
      editor.setItem(new ComboItem());
    }
  }

  @Override public Component getEditorComponent() {
    return editor;
  }

  @Override public void addActionListener(ActionListener l) {
    editor.addActionListener(l);
  }

  @Override public void removeActionListener(ActionListener l) {
    editor.removeActionListener(l);
  }
}

final class EditorPanel extends JPanel {
  private final JCheckBox enabledCheck = new JCheckBox();
  private final JCheckBox editableCheck = new JCheckBox();
  private final JTextField textField = new JTextField("", 16);
  private final transient ComboItem data;
  private int editingIndex = -1;

  protected EditorPanel(ComboItem data) {
    super();
    this.data = data;
    setItem(data);

    enabledCheck.addActionListener(e -> {
      Container c = SwingUtilities.getAncestorOfClass(JComboBox.class, this);
      if (c instanceof JComboBox) {
        JComboBox<?> combo = (JComboBox<?>) c;
        ComboItem item = (ComboItem) combo.getItemAt(editingIndex);
        item.setEnabled(((JCheckBox) e.getSource()).isSelected());
        editableCheck.setEnabled(item.isEnabled());
        textField.setEnabled(item.isEnabled());
        combo.setSelectedIndex(editingIndex);
      }
    });
    enabledCheck.setOpaque(false);
    enabledCheck.setFocusable(false);

    editableCheck.addActionListener(e -> {
      Container c = SwingUtilities.getAncestorOfClass(JComboBox.class, this);
      if (c instanceof JComboBox) {
        JComboBox<?> combo = (JComboBox<?>) c;
        ComboItem item = (ComboItem) combo.getItemAt(editingIndex);
        item.setEditable(((JCheckBox) e.getSource()).isSelected());
        textField.setEditable(item.isEditable());
        combo.setSelectedIndex(editingIndex);
      }
    });
    editableCheck.setOpaque(false);
    editableCheck.setFocusable(false);

    textField.addActionListener(e -> {
      Container c = SwingUtilities.getAncestorOfClass(JComboBox.class, this);
      if (c instanceof JComboBox) {
        JComboBox<?> combo = (JComboBox<?>) c;
        ComboItem item = (ComboItem) combo.getItemAt(editingIndex);
        item.setText(((JTextField) e.getSource()).getText());
        combo.setSelectedIndex(editingIndex);
      }
    });
    textField.setBorder(BorderFactory.createEmptyBorder());
    textField.setOpaque(false);

    setOpaque(false);
    setLayout(new BoxLayout(this, BoxLayout.LINE_AXIS));

    add(enabledCheck);
    add(editableCheck);
    add(textField);
  }

  public int getEditingIndex() {
    return editingIndex;
  }

  public void setEditingIndex(int idx) {
    this.editingIndex = idx;
  }

  public ComboItem getItem() {
    data.setEnabled(enabledCheck.isSelected());
    data.setEditable(editableCheck.isSelected());
    data.setText(textField.getText());
    return data;
  }

  public void setItem(ComboItem item) {
    enabledCheck.setSelected(item.isEnabled());

    editableCheck.setSelected(item.isEditable());
    editableCheck.setEnabled(item.isEnabled());

    textField.setText(item.getText());
    textField.setEnabled(item.isEnabled());
    textField.setEditable(item.isEditable());
  }

  public void selectAll() {
    textField.requestFocusInWindow();
    textField.selectAll();
  }

  public void addActionListener(ActionListener l) {
    textField.addActionListener(l);
    enabledCheck.addActionListener(l);
    editableCheck.addActionListener(l);
  }

  public void removeActionListener(ActionListener l) {
    textField.removeActionListener(l);
    enabledCheck.removeActionListener(l);
    editableCheck.removeActionListener(l);
  }
}

References

2018/10/31

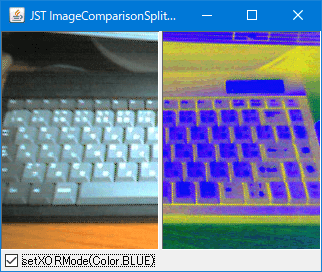

Create an Image Comparison Slider with JSplitPane

Code

ImageIcon icon = new ImageIcon(getClass().getResource("test.png"));

Component beforeCanvas = new JComponent() {
  @Override protected void paintComponent(Graphics g) {
    super.paintComponent(g);
    int iw = icon.getIconWidth();
    int ih = icon.getIconHeight();
    g.drawImage(icon.getImage(), 0, 0, iw, ih, this);
  }
};
split.setLeftComponent(beforeCanvas);

Component afterCanvas = new JComponent() {
  @Override protected void paintComponent(Graphics g) {
    super.paintComponent(g);
    Graphics2D g2 = (Graphics2D) g.create();
    int iw = icon.getIconWidth();
    int ih = icon.getIconHeight();
    if (check.isSelected()) {
      g2.setColor(getBackground());
      g2.setXORMode(Color.BLUE);
    } else {
      g2.setPaintMode();
    }
    Point pt = getLocation();
    Insets ins = split.getBorder().getBorderInsets(split);
    g2.translate(-pt.x + ins.left, 0);
    g2.drawImage(icon.getImage(), 0, 0, iw, ih, this);
    g2.dispose();
  }
};
split.setRightComponent(afterCanvas);

References

2018/09/30

Expand the zip file selected by JFileChooser

Code

JButton button1 = new JButton("unzip");
button1.addActionListener(e -> {
  String str = field.getText();
  Path path = Paths.get(str);
  if (str.isEmpty() || Files.notExists(path)) {
    return;
  }
  String name = Objects.toString(path.getFileName());
  int lastDotPos = name.lastIndexOf('.');
  if (lastDotPos > 0) {
    name = name.substring(0, lastDotPos);
  }
  Path destDir = path.resolveSibling(name);
  try {
    if (Files.exists(destDir)) {
      String m = String.format(
          "<html>%s already exists.<br>Do you want to overwrite it?",
          destDir.toString());
      int rv = JOptionPane.showConfirmDialog(
          button1.getRootPane(), m, "Unzip", JOptionPane.YES_NO_OPTION);
      if (rv != JOptionPane.YES_OPTION) {
        return;
      }
    } else {
      if (LOGGER.isLoggable(Level.INFO)) {
        LOGGER.info("mkdir0: " + destDir.toString());
      }
      Files.createDirectories(destDir);
    }
    ZipUtil.unzip(path, destDir);
  } catch (IOException ex) {
    ex.printStackTrace();
  }
});
// ...
public static void unzip(Path zipFilePath, Path destDir) throws IOException {
  try (ZipFile zipFile = new ZipFile(zipFilePath.toString())) {
    Enumeration<? extends ZipEntry> e = zipFile.entries();
    while (e.hasMoreElements()) {
      ZipEntry zipEntry = e.nextElement();
      String name = zipEntry.getName();
      Path path = destDir.resolve(name);
      if (name.endsWith("/")) { // if (Files.isDirectory(path)) {
        log("mkdir1: " + path.toString());
        Files.createDirectories(path);
      } else {
        Path parent = path.getParent();
        if (Files.notExists(parent)) {
          log("mkdir2: " + parent.toString());
          Files.createDirectories(parent);
        }
        log("copy: " + path.toString());
        Files.copy(zipFile.getInputStream(zipEntry),
                   path, StandardCopyOption.REPLACE_EXISTING);
      }
    }
  }
}
//...
public static void zip(Path srcDir, Path zip) throws IOException {
  try (Stream<Path> s = Files.walk(srcDir).filter(Files::isRegularFile)) {
    List<Path> files = s.collect(Collectors.toList());
    try (ZipOutputStream zos = new ZipOutputStream(Files.newOutputStream(zip))) {
      for (Path f: files) {
        String relativePath = srcDir.relativize(f).toString();
        ZipEntry ze = new ZipEntry(relativePath.replace('\\', '/'));
        zos.putNextEntry(ze);
        Files.copy(f, zos);
      }
    }
  }
}

References

Expand the zip file selected by JFileChooser(Japanese)

2018/08/29

Change the tab of JTabbedPane to a flat design style

Code

UIManager.put("TabbedPane.tabInsets", new Insets(5, 10, 5, 10));
UIManager.put("TabbedPane.tabAreaInsets", new Insets(0, 0, 0, 0));
UIManager.put("TabbedPane.selectedLabelShift", 0);
UIManager.put("TabbedPane.labelShift", 0);

// UIManager.put("TabbedPane.foreground", Color.WHITE);
// UIManager.put("TabbedPane.selectedForeground", Color.WHITE);
// UIManager.put("TabbedPane.unselectedBackground", UNSELECTED_BG);
UIManager.put("TabbedPane.tabAreaBackground", UNSELECTED_BG);

JTabbedPane tabs = new JTabbedPane() {
  @Override public void updateUI() {
    super.updateUI();
    setUI(new BasicTabbedPaneUI() {
      @Override protected void paintFocusIndicator(
          Graphics g, int tabPlacement, Rectangle[] rects, int tabIndex,
          Rectangle iconRect, Rectangle textRect, boolean isSelected) {
        // Do not paint anything
      }
      @Override protected void paintTabBorder(
          Graphics g, int tabPlacement, int tabIndex,
          int x, int y, int w, int h, boolean isSelected) {
        // Do not paint anything
      }
      @Override  protected void paintTabBackground(
          Graphics g, int tabPlacement, int tabIndex,
          int x, int y, int w, int h, boolean isSelected) {
        g.setColor(isSelected ? SELECTED_BG : UNSELECTED_BG);
        g.fillRect(x, y, w, h);
      }
      @Override protected void paintContentBorderRightEdge(
          Graphics g, int tabPlacement, int selectedIndex,
          int x, int y, int w, int h) {
        g.setColor(SELECTED_BG);
        g.fillRect(x, y, w, h);
      }
      // ...
    });
    setOpaque(true);
    setForeground(Color.WHITE);
    setTabPlacement(SwingConstants.LEFT);
    setTabLayoutPolicy(JTabbedPane.SCROLL_TAB_LAYOUT);
  }
};

References

2018/07/31

Syntax highlighting the source code in the JEditorPane

Code

// NG: color:#RGB
// OK: color:#RRGGBB
private void loadFile(String path) {
  try (Stream<String> lines = Files.lines(
      Paths.get(path), StandardCharsets.UTF_8)) {
    String txt = lines.map(s -> s.replace("&", "&amp;")
                                 .replace("<", "&lt;")
                                 .replace(">", "&gt;"))
      .collect(Collectors.joining("\n"));
    editor.setText("<pre>" + prettify(engine, txt) + "\n</pre>");
  } catch (IOException ex) {
    ex.printStackTrace();
  }
}

private static String prettify(ScriptEngine engine, String src) {
  try {
    Object w = engine.get("window");
    return (String) ((Invocable) engine).invokeMethod(
        w, "prettyPrintOne", src);
  } catch (ScriptException | NoSuchMethodException ex) {
    ex.printStackTrace();
    return "";
  }
}

References

2018/06/29

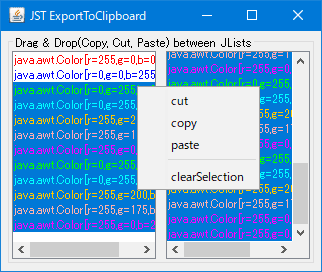

Move items by copying and pasting between JLists

Code

class ListPopupMenu extends JPopupMenu {
  private final JMenuItem cutItem;
  private final JMenuItem copyItem;
  protected ListPopupMenu(JList<?> list) {
    super();
    Clipboard clipboard = Toolkit.getDefaultToolkit().getSystemClipboard();
    TransferHandler handler = list.getTransferHandler();
    cutItem = add("cut");
    cutItem.addActionListener(e -> {
      handler.exportToClipboard(list, clipboard, TransferHandler.MOVE);
    });
    copyItem = add("copy");
    copyItem.addActionListener(e -> {
      handler.exportToClipboard(list, clipboard, TransferHandler.COPY);
    });
    add("paste").addActionListener(e -> {
      handler.importData(list, clipboard.getContents(null));
    });
    addSeparator();
    add("clearSelection").addActionListener(e -> list.clearSelection());
  }
  @Override public void show(Component c, int x, int y) {
    if (c instanceof JList) {
      boolean isSelected = !((JList<?>) c).isSelectionEmpty();
      cutItem.setEnabled(isSelected);
      copyItem.setEnabled(isSelected);
      super.show(c, x, y);
    }
  }
}

// ...
private static int getIndex(TransferHandler.TransferSupport info) {
  JList<?> target = (JList<?>) info.getComponent();
  int index; // = dl.getIndex();
  if (info.isDrop()) { // Mouse Drag & Drop
    System.out.println("Mouse Drag & Drop");
    TransferHandler.DropLocation tdl = info.getDropLocation();
    if (tdl instanceof JList.DropLocation) {
      index = ((JList.DropLocation) tdl).getIndex();
    } else {
      index = target.getSelectedIndex();
    }
  } else { // Keyboard Copy & Paste
    index = target.getSelectedIndex();
  }
  DefaultListModel<?> listModel = (DefaultListModel<?>) target.getModel();
  // boolean insert = dl.isInsert();
  int max = listModel.getSize();
  // int index = dl.getIndex();
  index = index < 0 ? max : index; // If it is out of range, it is appended to the end
  index = Math.min(index, max);
  return index;
}

References

Move items by copying and pasting between JLists(Japanese)

2018/05/25

Use JTable instead of JList as a drop down list of JComboBox

Code

class DropdownTableComboBox&lt;E extends List&lt;Object>> extends JComboBox&lt;E> {
  protected final transient HighlightListener highlighter = new HighlightListener();
  protected final JTable table = new JTable() {
    @Override public Component prepareRenderer(
          TableCellRenderer renderer, int row, int column) {
      Component c = super.prepareRenderer(renderer, row, column);
      c.setForeground(Color.BLACK);
      if (highlighter.isHighlightableRow(row)) {
        c.setBackground(new Color(255, 200, 200));
      } else if (isRowSelected(row)) {
        c.setBackground(Color.CYAN);
      } else {
        c.setBackground(Color.WHITE);
      }
      return c;
    }
    @Override public void updateUI() {
      removeMouseListener(highlighter);
      removeMouseMotionListener(highlighter);
      super.updateUI();
      addMouseListener(highlighter);
      addMouseMotionListener(highlighter);
      getTableHeader().setReorderingAllowed(false);
    }
  };
  protected final List&lt;E> list;

  protected DropdownTableComboBox(List&lt;E> list, DefaultTableModel model) {
    super();
    this.list = list;
    table.setModel(model);
    list.forEach(this::addItem);
    // list.forEach(model::addRow);
    list.forEach(v -> model.addRow(v.toArray(new Object[0])));
  }

  @Override public void updateUI() {
    super.updateUI();
    EventQueue.invokeLater(() -> {
      setUI(new MetalComboBoxUI() {
        @Override protected ComboPopup createPopup() {
          return new ComboTablePopup(comboBox, table);
        }
      });
      setEditable(false);
    });
  }
  public List&lt;Object> getSelectedRow() {
    return list.get(getSelectedIndex());
  }
}

References

Use JTable instead of JList as a drop down list of JComboBox(Japanese)

2018/04/26

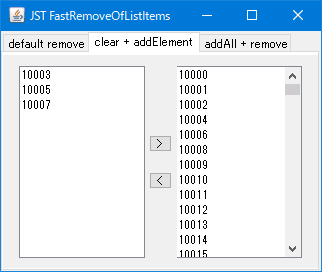

Move large numbers of items to another JList as fast as possible

Code

private static <E> void move1(JList<E> from, JList<E> to) {
  ListSelectionModel sm = from.getSelectionModel();
  int[] selectedIndices = from.getSelectedIndices();

  DefaultListModel<E> fromModel = (DefaultListModel<E>) from.getModel();
  DefaultListModel<E> toModel = (DefaultListModel<E>) to.getModel();
  List<E> unselectedValues = new ArrayList<>();
  for (int i = 0; i < fromModel.getSize(); i++) {
    if (!sm.isSelectedIndex(i)) {
      unselectedValues.add(fromModel.getElementAt(i));
    }
  }
  if (selectedIndices.length > 0) {
    for (int i: selectedIndices) {
      toModel.addElement(fromModel.get(i));
    }
    fromModel.clear();
    // unselectedValues.forEach(fromModel::addElement);
    DefaultListModel<E> model = new DefaultListModel<>();
    unselectedValues.forEach(model::addElement);
    from.setModel(model);
  }
}

References

Move large numbers of items to another JList as fast as possible(Japanese)

2018/03/29

Create Week Calendar in JList and display contribution activity heatmap

Code

JList<Contribution> weekList = new JList<Contribution>() {
  @Override public void updateUI() {
    setCellRenderer(null);
    super.updateUI();
    setLayoutOrientation(JList.VERTICAL_WRAP);
    setVisibleRowCount(DayOfWeek.values().length); // ensure 7 rows in the list
    setFixedCellWidth(size.width);
    setFixedCellHeight(size.height);
    setCellRenderer(new ContributionListRenderer());
    getSelectionModel().setSelectionMode(ListSelectionModel.SINGLE_INTERVAL_SELECTION);
    setBorder(BorderFactory.createEmptyBorder(2, 2, 2, 2));
  }
};
// ...
private class ContributionListRenderer implements ListCellRenderer<Contribution> {
  private final Icon emptyIcon = new ColorIcon(Color.WHITE);
  private final ListCellRenderer<? super Contribution> renderer
    = new DefaultListCellRenderer();
  @Override public Component getListCellRendererComponent(
      JList<? extends Contribution> list, Contribution value, int index,
      boolean isSelected, boolean cellHasFocus) {
    JLabel l = (JLabel) renderer.getListCellRendererComponent(
        list, null, index, isSelected, cellHasFocus);
    if (value.date.isAfter(currentLocalDate)) {
      l.setIcon(emptyIcon);
      l.setToolTipText(null);
    } else {
      l.setIcon(activityIcons.get(value.activity));
      String actTxt = value.activity == 0 ? "No" : Objects.toString(value.activity);
      l.setToolTipText(actTxt + " contribution on " + value.date.toString());
    }
    return l;
  }
}

References

Create Week Calendar in JList and display contribution activity heatmap(Japanese)

2018/02/26

Create a range selectable calendar with JList

Code

public final LocalDate realLocalDate = LocalDate.now();
public LocalDate currentLocalDate;
public final Dimension size = new Dimension(40, 26);

// ...
JLabel yearMonthLabel = new JLabel("", SwingConstants.CENTER);
JList<LocalDate> monthList = new JList<LocalDate>(new CalendarViewListModel(realLocalDate)) {
  @Override public void updateUI() {
    setCellRenderer(null);
    super.updateUI();
    setLayoutOrientation(JList.HORIZONTAL_WRAP);
    setVisibleRowCount(CalendarViewListModel.ROW_COUNT); // ensure 6 rows in the list
    setFixedCellWidth(size.width);
    setFixedCellHeight(size.height);
    setCellRenderer(new CalendarListRenderer<>());
    getSelectionModel().setSelectionMode(ListSelectionModel.SINGLE_INTERVAL_SELECTION);
  }
};

// ...
class CalendarViewListModel extends AbstractListModel<LocalDate> {
  public static final int ROW_COUNT = 6;
  private final LocalDate startDate;
  private final WeekFields weekFields = WeekFields.of(Locale.getDefault());
  protected CalendarViewListModel(LocalDate date) {
    super();
    LocalDate firstDayOfMonth = YearMonth.from(date).atDay(1);
    int dowv = firstDayOfMonth.get(weekFields.dayOfWeek()) - 1;
    startDate = firstDayOfMonth.minusDays(dowv);
  }

  @Override public int getSize() {
    return DayOfWeek.values().length * ROW_COUNT;
  }

  @Override public LocalDate getElementAt(int index) {
    return startDate.plusDays(index);
  }
}

References

2018/01/29

Apply LocalDate considering Locale to JTable and display calendar

java -Duser.language=en -jar example.jar

java -Duser.language=fr -jar example.jar

java -Duser.language=ar -jar example.jar

Code

class CalendarViewTableModel extends DefaultTableModel {
  private final LocalDate startDate;
  private final WeekFields weekFields = WeekFields.of(Locale.getDefault());

  public CalendarViewTableModel(LocalDate date) {
    super();
    LocalDate firstDayOfMonth = YearMonth.from(date).atDay(1);
    int dowv = firstDayOfMonth.get(weekFields.dayOfWeek()) - 1;
    startDate = firstDayOfMonth.minusDays(dowv);
  }

  @Override public Class<?> getColumnClass(int column) {
    return LocalDate.class;
  }

  @Override public String getColumnName(int column) {
    return weekFields.getFirstDayOfWeek().plus(column)
      .getDisplayName(TextStyle.SHORT_STANDALONE, Locale.getDefault());
  }

  @Override public int getRowCount() {
    return 6;
  }

  @Override public int getColumnCount() {
    return 7;
  }

  @Override public Object getValueAt(int row, int column) {
    return startDate.plusDays(row * getColumnCount() + column);
  }

  @Override public boolean isCellEditable(int row, int column) {
    return false;
  }
}

Google Tag Manager

2018/12/27

Code

References

2018/11/29

Code

References

2018/10/31

Code

References

2018/09/30

Code

References

2018/08/29

Code

References

2018/07/31

Code

References

2018/06/29

Code

References

2018/05/25

Code

References

2018/04/26

Code

References

2018/03/29

Code

References

2018/02/26

Code

References

2018/01/29

Code

References
